Mechanical Broom Street Sweepers

We make 7 models of Starfire mechanical broom street sweepers in 4, 4.5. 5 and 6 yd³ hopper capacities.  2 models are mounted on NON-CDL chassis, and 2 are available in PTO-driven, single-engine versions.

Mechanical broom sweepers are especially when it comes to sweeping clean a wide variety and sizes of debris commonly found on construction sites, in city gutters, and along county/state highways.  Brooms sweep up larger, bulkier debris that routinely clog their regenerative air and straight vacuum counterparts.  Broom sweepers are also quieter to operate and offer high-dump debris disposal as standard equipment.  Finally, brooms do not rely on high air volume to pick up debris.  This means their internal components are not subject to the same sand blasting effects that gradually wear away regenerative or vacuum alternatives.

Though model sizes differ to fit different sized chassis, all share a high percentage of parts compatibility.   This helps us ensure the high level of parts availability our customers have come to expect.

Stewart-Amos Mechanical Brroms

All Starfire models are equipped with unique features designed to make your sweeping tasks safer, easier and more cost effective.

Three Major Performance, Productivity & Safety Features Unique to Starfire Models Include:

Stewart Amos 3-Shaft Elevator

Exclusive 3-Shaft Elevator System
Benefits:
EXTENDED CHAIN LIFE.3rd shaft provides proper return (upper) chain support. This allows chains to run as loose as possible dramatically improving chain wear life versus similar 2-shaft designs.
REDUCED MAINTENANCE COSTS. 3rd shaft provides twice the number of chain adjustment points. Together with reduced chain wear, this significantly reduces maintenance downtime & costs versus 2-shaft designs.
BETTER LOADING/SWEEPING PERFORMANCE. Eliminates chain clapping common in 2-shaft designs. 3rd shaft optimizes chain spacing, reduces clogging & ensures more effective sweeping of large, bulky debris.

Stewart-Amos-Spring-Balanced-Brooms

Spring-Balanced Main & Gutter Brooms
Spring-balanced main and gutter brooms auto compensate for wear.  They are full-floating and adjust automatically to effectively clean uneven surfaces.  No operator judgment required!

Stewart-Amos-4x-Scissor-Lift

Massive “X” Style Hopper Lift Scissors
“X” style lift scissors ensure exceptional hopper lifting strength & stability.
Especially important when dumping wet, sticky or unbalanced loads.

Seven Starfire Mechanical Broom Sweepers. One Effectively Simple, Time-proven Design.

Starfire Mechanical Broom S-4c

S-4c

An effectively simple full-featured, heavy duty 4 yd3 broom sweeper mounted on a highly-maneuverable, non-CDL cab-over chassis.

Starfire Mechanical Broom S-4XL

S-4XL

An effectively simple full-featured, 4.5 yd3 broom sweeper mounted on a large, non-CDL chassis.

S-4XXL

An effectively simple full-featured, 4.5 yd3 broom sweeper mounted on a CDL chassis.
(See S-4XL product page and literature for more information)

Starfire Mechanical Broom S-5s

S-5s

An effectively simple rugged, full-featured and 5 yd3 broom sweeper mounted on a large conventional or cab-over chassis.

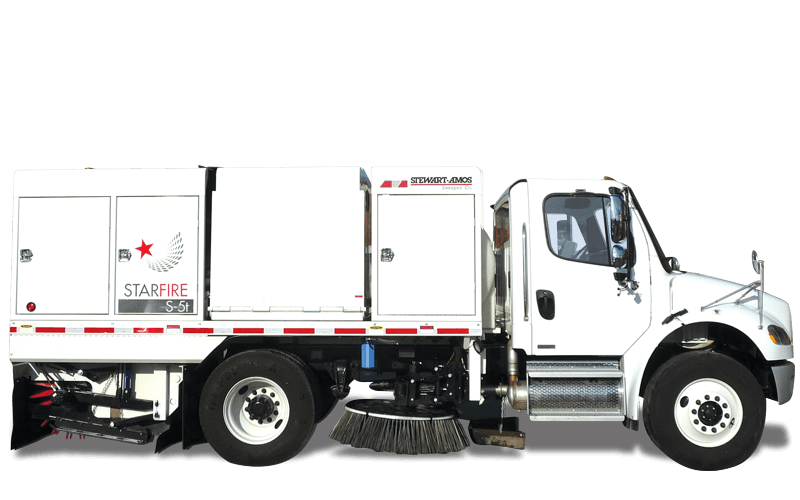

Starfire Mechanical Broom S-5t

S-5t

An effectively simple rugged, full-featured and 5 yd3, twin engine broom sweeper mounted on a large conventional or cab-over chassis.

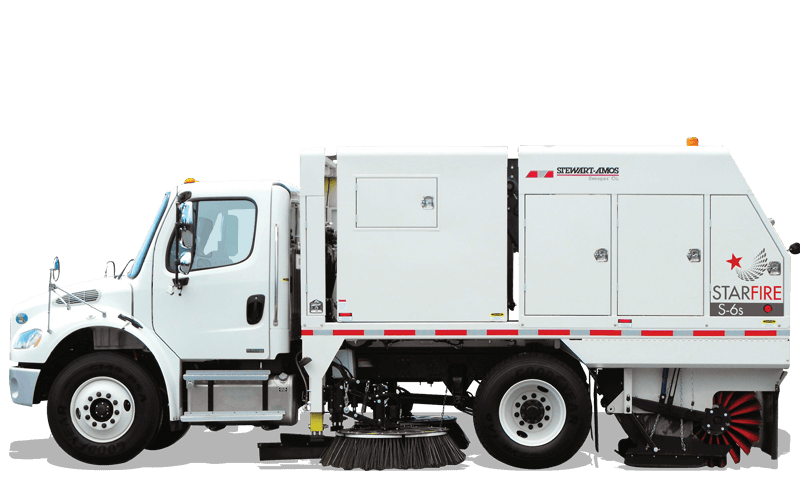

Starfire Mechanical Broom S-6s

S-6s

An effectively simple single engine, 6 yd3 broom sweeper mounted on a full-size commercial chassis.

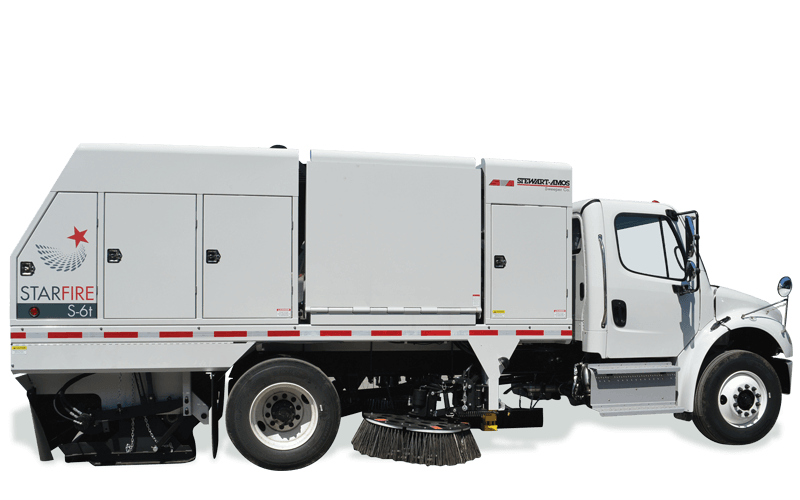

Starfire Mechanical Broom S-6t

S-6t

An effectively simple twin engine, 6 yd3 broom sweeper mounted on a full-size commercial chassis.

Model Number Sweeping Path Chassis GVWR CDL Required Hopper Capacity Hydraulic Power Train Dump Height* Gutter Broom Size Water Capacity Elevator Dump Door Reach
S-4c 10′ 19,500 lbs NO 4 yd3 Auxiliary Engine 16″ – 132″ (11′) 42″ 200 gal 7 Flights 44″
S-4XL 11′ 26,000 lbs NO 4.5 yd3 Auxiliary Engine 17″ – 144″ (12′) 54″ (42″ Opt) 330 gal 9 Flights 44″
S-4XXL 11′ 33,000 lbs YES 4.5 yd3 Auxiliary Engine 17″ – 144″ (12′) 54″ (42″ Opt) 330 gal 10 Flights 44″
S-5s 11′ 33,000 lbs YES 5 yd3 Auxiliary Engine 15″ – 144″ (12′) 54″ (42″ Opt) 350 gal 10 Flights 53″
S-5t 11′ 33,000 lbs YES 5 yd3 PTO 15″ – 144″ (12′) 54″ (42″ Opt) 350 gal 10 Flights 53″
S-6s 12′ 33,000 lbs YES 6 yd3
top loading
Auxiliary Engine 15″ – 146″ (12’2″) 54″ (42″ Opt) 350 gal 10 Flights 54″
S-6t 12′ 33,000 lbs YES 6 yd3
top loading
PTO 15″ – 146″ (12’2″) 54″ (42″ Opt) 350 gal 12 Flights 54″

*chassis dependent
PM-10 Certified – Rule 1186

Learn more about our Starfire Mechanical Broom Sweepers. Download our product information sheets or watch our videos.

For information about Starfire Sweepers, click here or call 800.482.2302
