GALAXY R-4 SWEEPER TRUCK

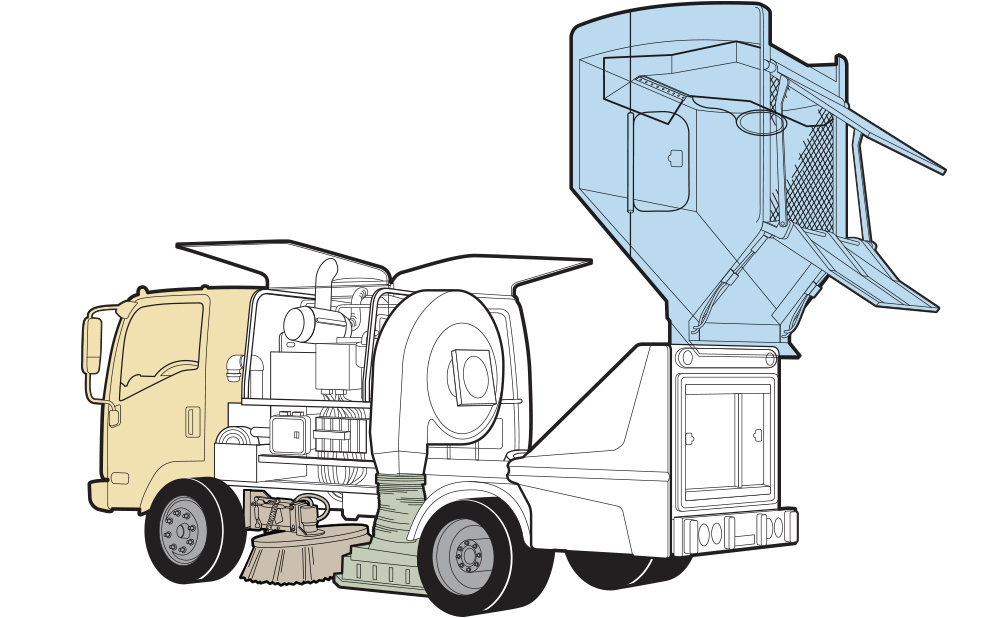

The R-4 is a full-featured, 4 yd3 regenerative air street sweeper that is mounted on a compact and highly maneuverable non-CDL cab-over chassis. Manufactured with reliability and simplicity in mind, the R-4 features a blast orifice style sweeping hood that generates a powerful airflow needed for deep cleaning road surfaces.
The R-4 offers the right combination of size, power, and capacity, making it perfect for a variety of applications, including roads, congested downtowns, narrow cul-de-sacs, alleyways, and parking lots.
All Galaxy models are equipped with unique features designed to make your sweeping tasks safer, easier and more cost effective.
Key Performance, Productivity & Safety Features
Galaxy sweepers deep clean road surfaces! We design and build effectively simple, uncomplicated regenerative air street sweepers that are easy to operate and maintain, while providing the lowest cost of ownership possible. All of our Galaxy models are built for superior productivity in high-performance sweeping applications. They feature a blast orifice style sweeping hood and powerful air flow for optimum sweeping.
Check out our productivity and performance features below.

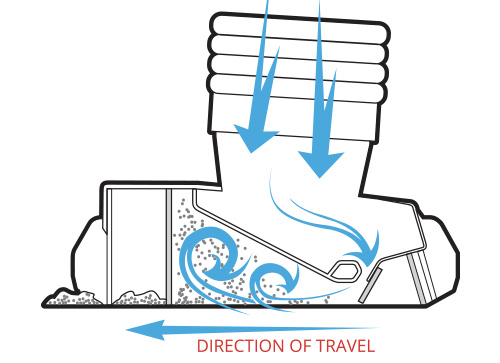

The Blast Orifice Hood allows the air flow generated by the high-pressure fan to effectively vacuum the debris from the road surface.

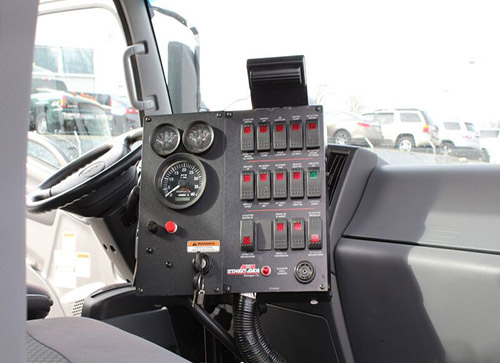

Vertically-mounted control panel is 6-way adjustable for easy & ergonomic viewing. Convenient console light allows for ease of use at night.

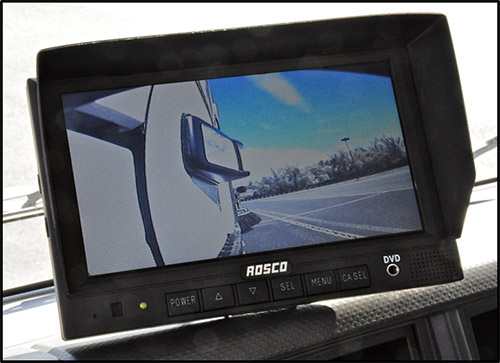

Color camera system keeps operator facing forward. Sweeper comes standard with dashboard-mounted 7" color monitor with right gutter broom & rear backup cameras. Hood view camera is available.

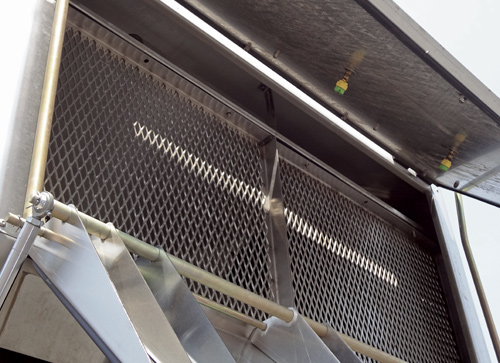

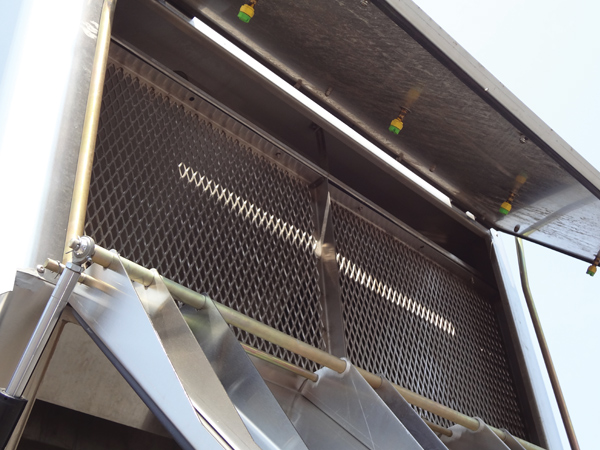

14.4 ft2 stainless steel debris separator screens maximize sweeping productivity. Screens can be easily cleaned from outside of unit. Bolt-in design makes screen replacement easy.

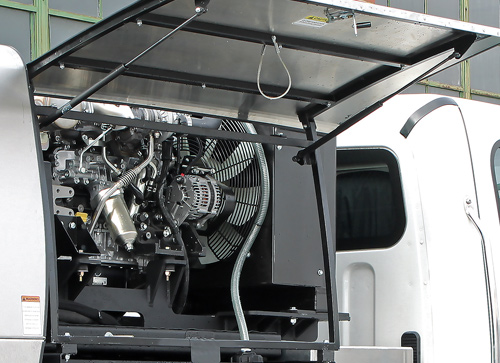

Stainless steel engine shrouds are compact, protective & noise reducing. Gull wing design makes it easier & faster to service power plant without raising an interconnected hopper/ shroud assembly.

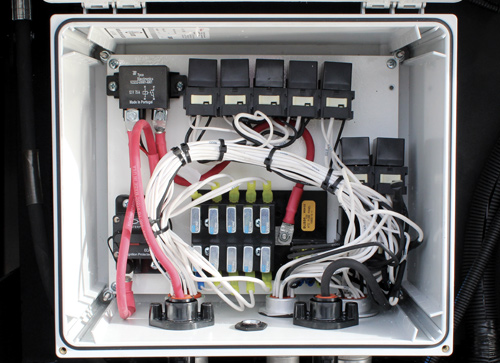

Electrical relays & fuses are protected from the elements in a sealed NEMA 4 enclosure. The wiring is heat stamped with numbers for easy identification.

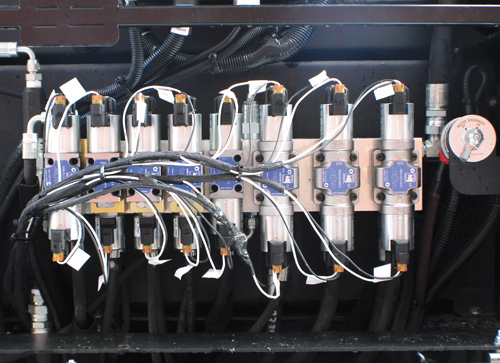

Effectively simple electric-over hydraulic valve system has reliable & easy-to-replace components. Onboard pressure gauge allows for simple servicing.

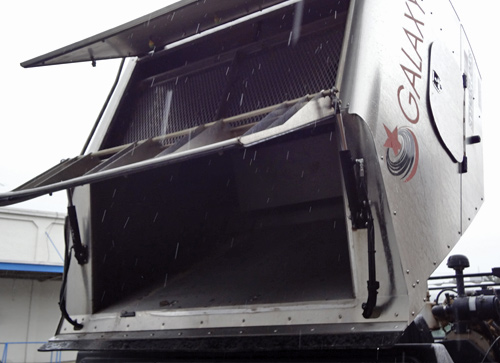

The top-mounted hopper cover opens automatically during dump cycles to provide quicker, easier & safer cleaning of stainless steel screens & hopper.

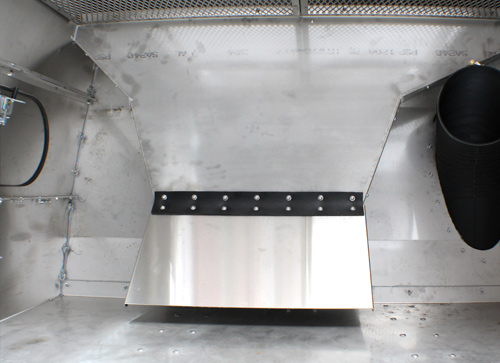

Stainless steel, centrifugal dust separator located inside the hopper separates fines from the air stream.

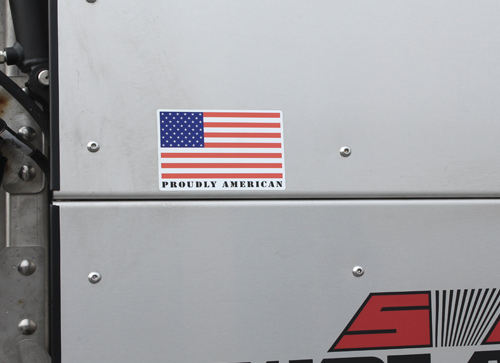

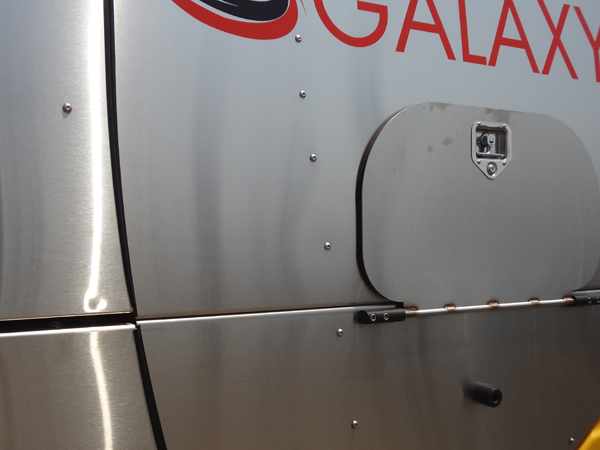

Bolt-together, stainless steel hopper panels (no welds) are easier & more economical to replace if damaged. Hopper comes with a 5-year “no rust-through” factory warranty.

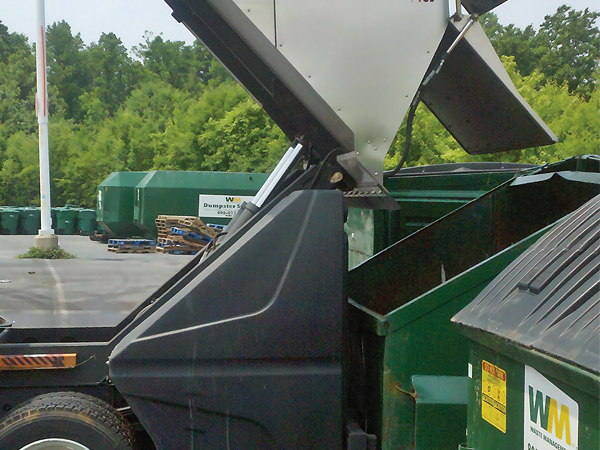

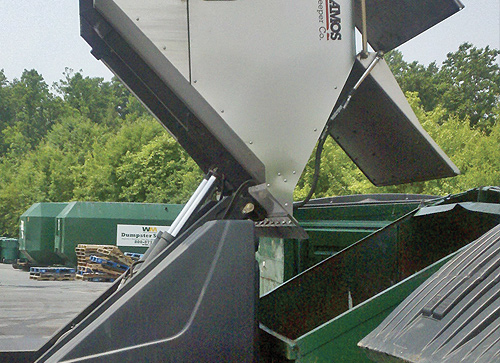

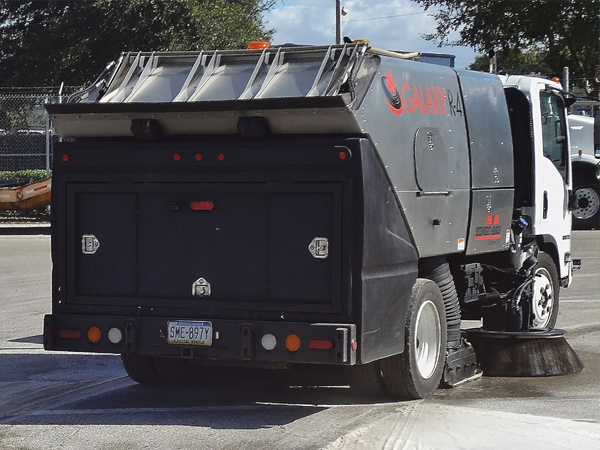

Rear 72" dump allows for convenient on-site disposal into 5'+ dumpsters. Exclusive 3" hopper slide-back feature moves hopper rear-ward allowing it to clear dumpster edges.

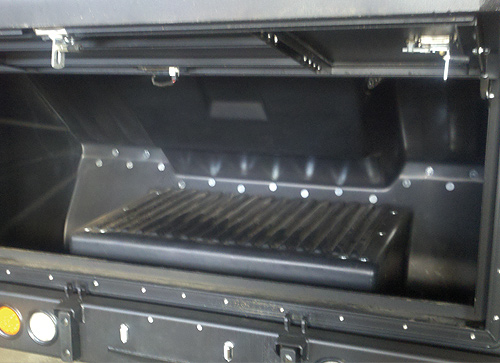

Large, one-piece polyethylene storage compartment provides nearly 80 ft3 of space for tools, tires, etc. Compartments are lockable and are illuminated with 2 LED lights.

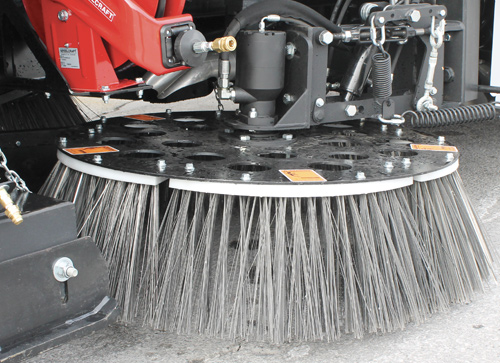

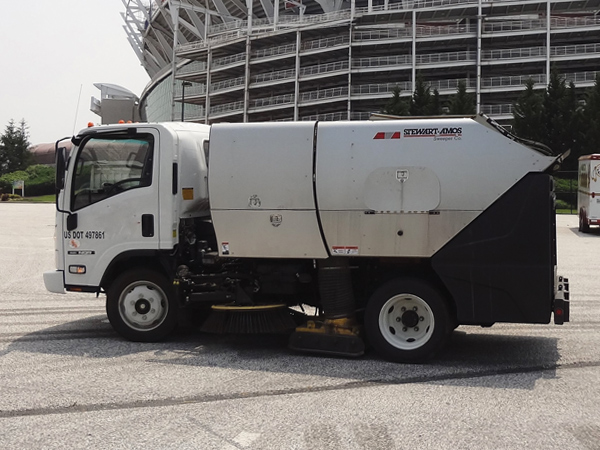

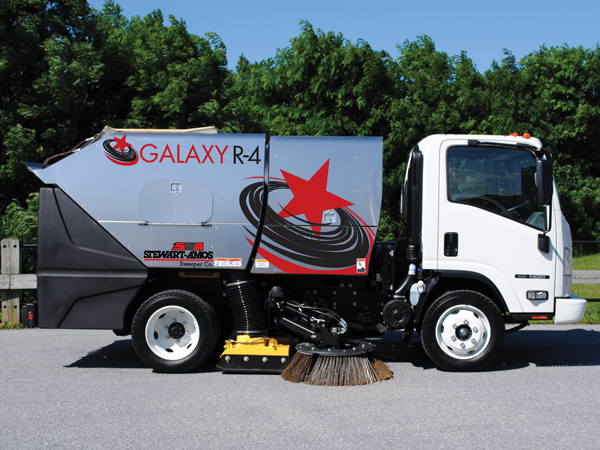

Spring-balanced, free-floating gutter brooms automatically apply correct surface pressure for maximum broom wear life. In-cab gutter broom electric tilt is standard.Galaxy R-4 Shown Above.
| Model Number | Sweeping Path | Chassis GVWR | CDL Required | Hopper Capacity | Hydraulic Power Train | Dump Height | Gutter Broom Size | Water Capacity | Stainless Steel Hopper | Bolt-Together Hopper Panels | Top Hopper Access Door | Debris Hopper Screen |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R-4 | 10′ | 19,500 lbs | NO | 4.65 yd3 | 74.3 Kubota | 72″ | 39″ | 130 gal | YES | YES | YES | 14.4 ft2 |
Learn more about our Galaxy R-4 Regenerative Air Sweepers.
For information about the Galaxy R-4, click here or call 800.482.2302
