GALAXY R-6XL SWEEPER TRUCK
The R-6XL is a full-featured, high-capacity 6 yd3 regenerative air street sweeper that is mounted on the largest non-CDL chassis available. Manufactured with reliability and simplicity in mind, the R-6XL features a blast orifice style sweeping hood that generates a powerful air flow needed for deep cleaning road surfaces.
The R-6XL offers the right combination of size, power, and capacity, making it perfect for a variety of applications, including sweeping roads and congested downtowns.
All Galaxy models are equipped with unique features designed to make your sweeping tasks safer, easier and more cost effective.
Key Performance, Productivity & Safety Features
Galaxy sweepers deep clean road surfaces! We design and build effectively simple, uncomplicated regenerative air street sweepers that are easy to operate and maintain, while providing the lowest cost of ownership possible. All of our Galaxy models are built for superior productivity in high-performance sweeping applications. They feature a blast orifice style sweeping hood and powerful air flow for optimum sweeping.
Check out our productivity and performance features below.
Bolt-together, stainless steel hopper panels (no welds) are easier & more economical to replace if damaged. Hopper comes with a 5-year “no rust-through” factory warranty.
Stainless steel, centrifugal dust separator located inside the hopper separates fines from the air stream.

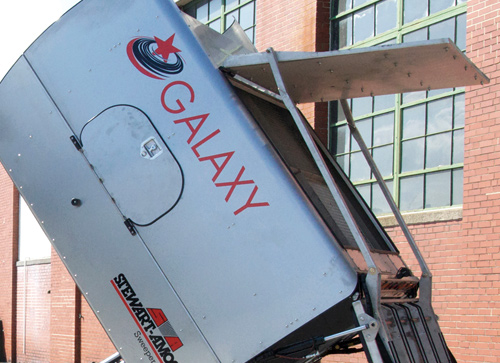

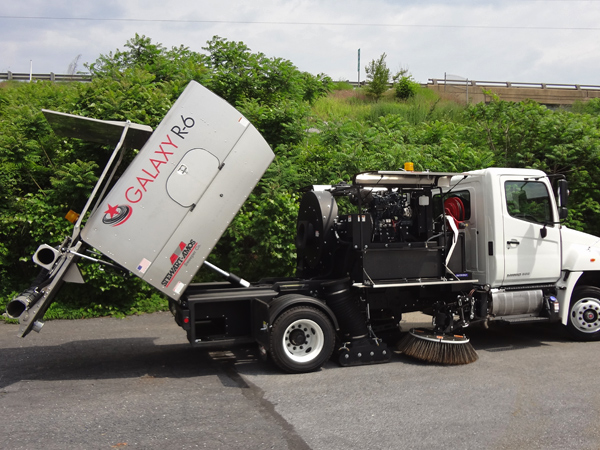

The top-mounted hopper cover opens automatically during dump cycles to provide quicker, easier & safer cleaning of stainless steel screens & hopper.

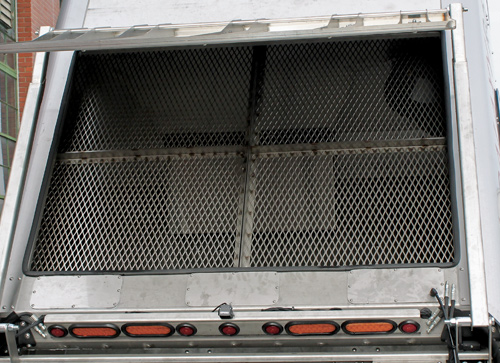

28 ft2 stainless steel debris separator screens maximize sweeping productivity. Screens can be easily cleaned from outside of unit. Bolt-in design makes screen replacement easy.

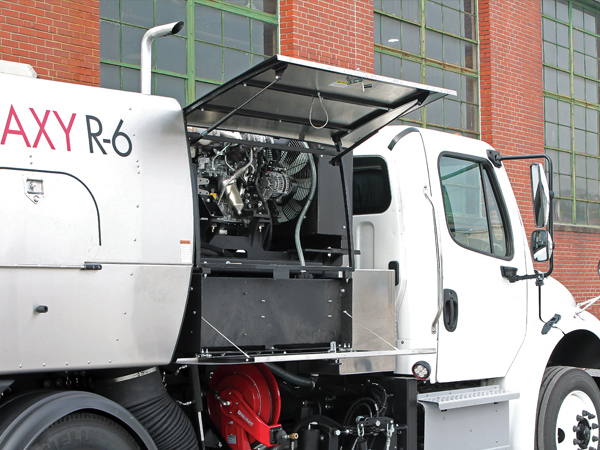

Stainless steel engine shrouds are compact, protective & noise reducing. Gull wing design makes it easier & faster to service power plant without raising an interconnected hopper/ shroud assembly.
Electrical relays & fuses are protected from the elements in a sealed NEMA 4 enclosure. The wiring is heat stamped with numbers for easy identification.
Effectively simple electric-over hydraulic valve system has reliable & easy-to-replace components. Onboard pressure gauge allows for simple servicing.

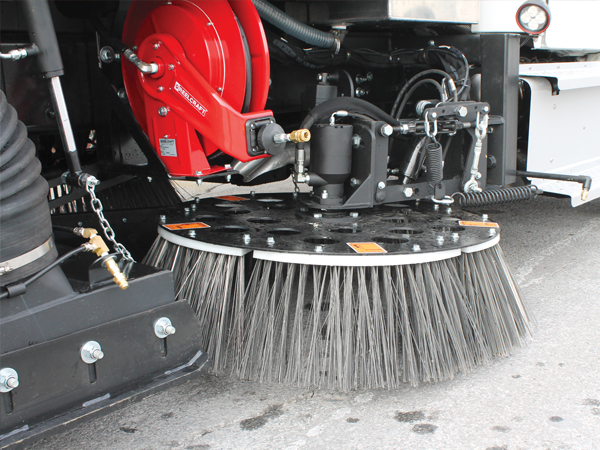

Spring-balanced, free-floating gutter brooms automatically apply correct surface pressure for maximum broom wear life. In-cab gutter broom electric tilt is standard.

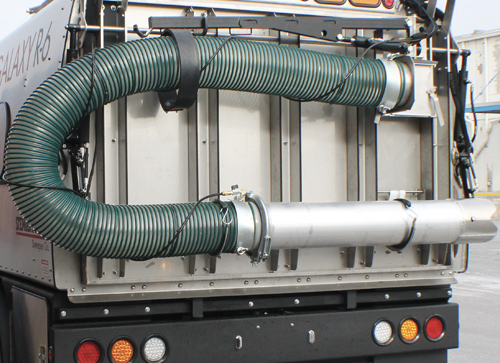

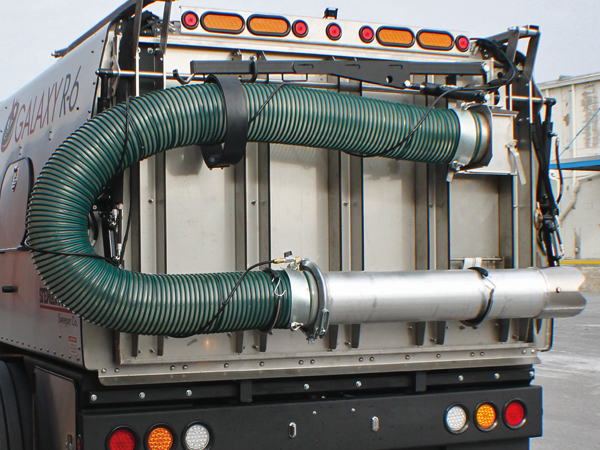

Optional rear-mounted 10′ Auxiliary Suction Hose with 4′ aluminum tube helps clean storm drains

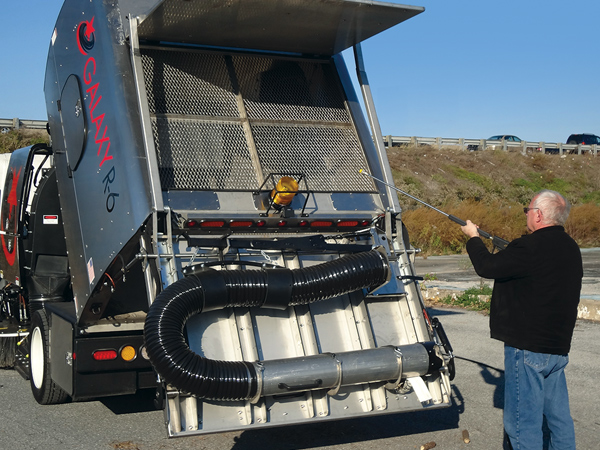

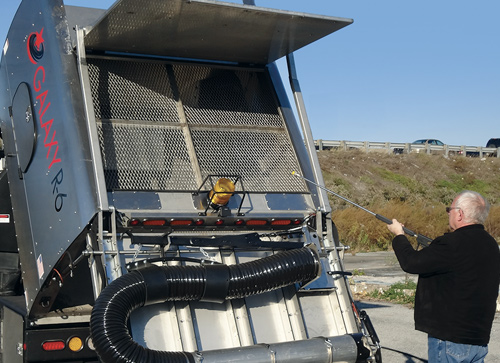

Optional High-Pressure Wash Down System with 50' hose reel & spray wand allow separator screens & hopper to be cleaned at any time which can improve vacuum performance.
74 HP Kubota turbo-charged diesel engine with high temperature/low pressure auto shutdown. This 4-cylinder engine is quiet & fuel efficient.

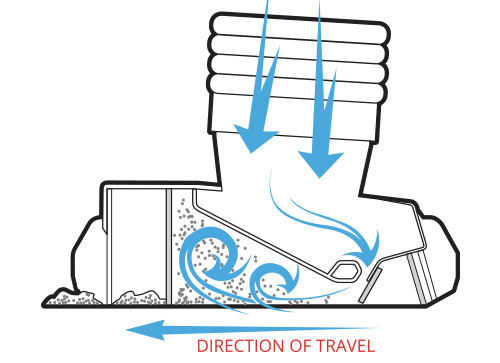

The Blast Orifice Hood allows the air flow generated by the high-pressure fan to effectively vacuum the debris from the road surface.
Vertically-mounted control panel is 6-way adjustable for easy & ergonomic viewing. Convenient console light allows for ease of use at night.
Color camera system keeps operator facing forward. Sweeper comes standard with dashboard-mounted 7" color monitor with right gutter broom & rear backup cameras. Hood view camera is available.
Two large, interconnected storage compartments provide over 20 ft3 of space across rear of unit for tools & vacuum hose extensions.

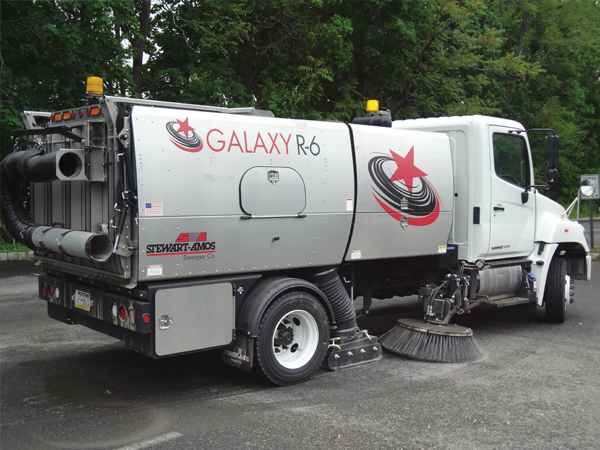

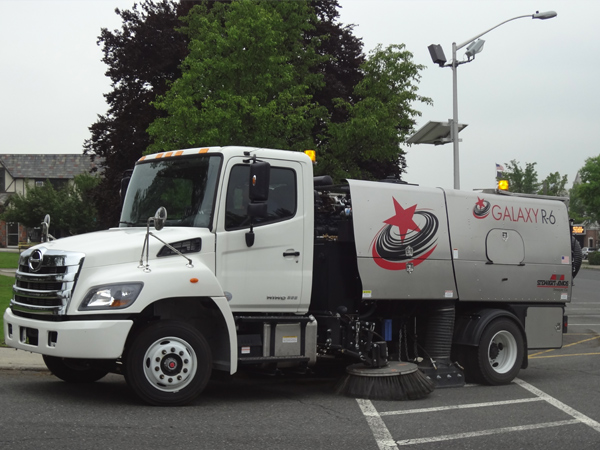

Galaxy R-6XL Shown Above.
| Model Number | Sweeping Path | Chassis GVWR | CDL Required | Hopper Capacity | Hydraulic Power Train | Dump Height | Gutter Broom Size* | Water Capacity | Stainless Steel Hopper | Bolt-Together Hopper Panels | Top Hopper Access Door | Debris Hopper Screen |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R-6XL | 10′ | 19,500 lbs | NO | 6.12 yd3 | 74.3 Kubota | 26″ | 42″ | 330 gal | YES | YES | YES | 28.8 ft2 |
*54″ Optional
Learn more about our Galaxy R-6XL Regenerative Air Sweepers.
For information about the Galaxy R-6XL, click here or call 800.482.2302
