“Effectively Simple” Street Sweepers

At Stewart-Amos Sweeper Co., we build every sweeper to the highest quality standards that incorporate our “effectively simple” design criteria.  With ease of operation, service and maintenance in mind, we engineer and select each component and system to be rugged, reliable and uncomplicated while providing for the most effective and highest sweeping performance.

We look forward to building one for you.  Please contact your local dealer for more information or to arrange a demonstration.

Mechanical Broom Street Sweepers

Designed for effectively cleaning large volumes of bulky or heavy debris in a single pass. We make 7 models of Starfire Mechanical Broom Street Sweepers in 4, 4.5. 5, & 6 yd3 capacities. Two models are mounted on NON-CDL chassis. Two are available in single engine versions.

Model sizes differ to fit various chassis sizes, but all share a high percentage of parts compatibility. This helps us ensure the high level of parts availability our customers have come to expect.

All Starfire models are designed with unique features to make your sweeping tasks safer, easier and more cost-effective.

Learn More

Stewart Amos Starfire Mechanical Broom

Starfile S-4XL Shown Above.

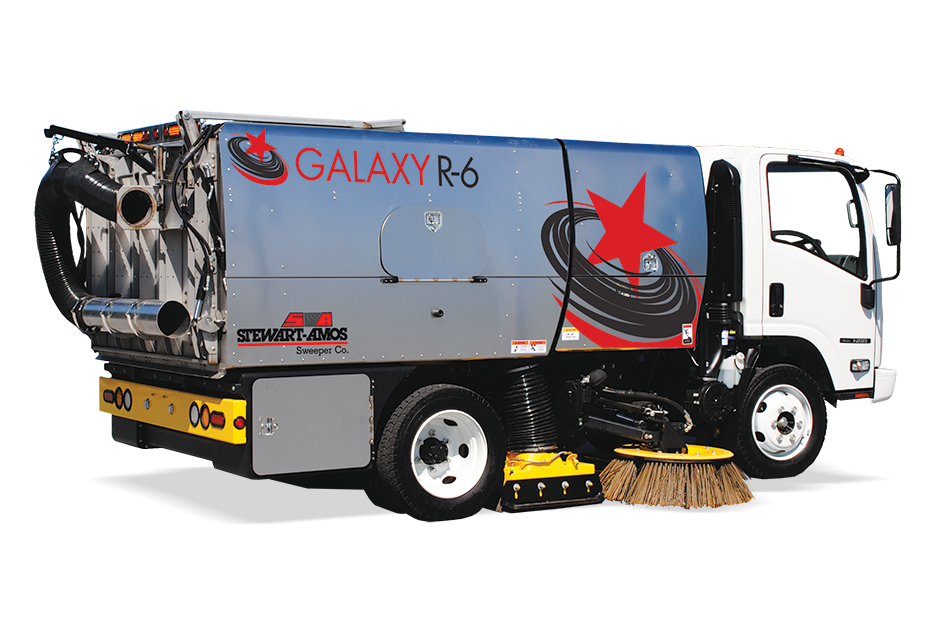

Galaxy R6

Regenerative Air Street Sweepers

Deep cleans road surfaces by blasting fine particles and smaller debris from small crevices or hard-to-reach spots.

We make 3 models of Galaxy Regenerative Air Street Sweepers mounted on highly maneuverable, non-CDL chassis ranging from a 4.65 to a 6.12 yd3.

All 3 models offer bolt-together stainless steel hopper panels, 5-year no-rust through hopper factory warranties, & hopper top access doors that makes screen cleaning faster, easier, & safer.

Like the Starfire, all Galaxy sweepers share a high percentage of parts compatibility for superior parts availability.

Learn More

Model Number Sweeping Path Chassis GVWR CDL Required Hopper Capacity Dump Height* Water Capacity
S-4c 10′ 19,500 lbs NO 4 yd3 16″ – 132″ (11′) 200 gal
S-4XL 11′ 26,000 lbs NO 4.5 yd3 17″ – 144″ (12′) 330 gal
S-4XXL 11′ 33,000 lbs YES 4.5 yd3 17″ – 144″ (12′) 330 gal
S-5s 11′ 33,000 lbs YES 5 yd3 15″ – 144″ (12′) 350 gal
S-5t 11′ 33,000 lbs YES 5 yd3 15″ – 144″ (12′) 350 gal
S-6s 12′ 33,000 lbs YES 6 yd3
top loading
15″ – 146″ (12’2″) 350 gal
S-6t 12′ 33,000 lbs YES 6 yd3
top loading
15″ – 146″ (12’2″) 350 gal

*chassis dependent

Model Number Sweeping Path Chassis GVWR CDL Required Hopper Capacity Hydraulic Power Train Dump Height*
R-4 10′ 17,950 lbs NO 4.65 yd3 74.3 Kubota 72″
R-6 10′ 19,500 lbs NO 6.12 yd3 74.3 Kubota 22″
R-6XL 10′
(11′ Opt)
26,000 lbs NO 6.12 yd3 74.3 Kubota 26″
